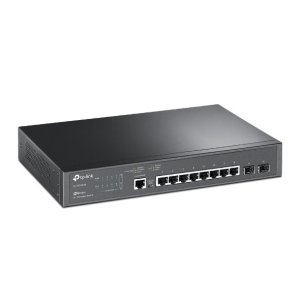

8portový gigabitový L2+ riadený switch JetStream s 2 SFP slotmi
Plne gigabitové porty: 8 gigabitových portov RJ45 a 2 porty SFP poskytujú vysokorýchlostné pripojenie.
Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)*, centralizovaná cloudová správa a inteligentné monitorovanie.
Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.
Statické smerovanie: Pomáha smerovať tok dát po lokálnej sieti, čím zaisťuje efektívne využívanie sieťových prostriedkov.
Robustná stratégia zabezpečenia: Funkcia viazania na adresu IP-MAC, ACL, zabezpečenie portov, ochrana proti útokom DoS, funkcia Storm Control, funkcia DHCP Snooping, overovanie protokolom 802.1X a Radius a ďalšie funkcie.
Optimalizovaný prenos hlasu a videa v aplikáciách: L2/L3/L4 QoS a funkcie IGMP Snooping.
Samostatná správa: Webové rozhranie, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkcie Dual Image prinášajú pokročilé možnosti správy.

HARDWARE FEATURES

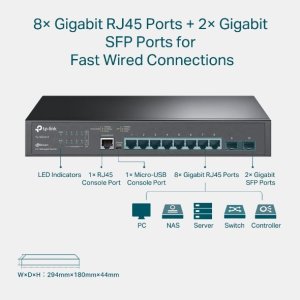

Interface • 8× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Mounting Rack Mountable / Desktop
Max Power Consumption 6.84 W (220 V/50 Hz)
Max Heat Dissipation 23.33 BTU/h (220 V/50 Hz)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.89 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling

• SP (Strict Priority)

• WRR (Weighted Round Robin)

• SP+WRR
  • Bandwidth Control

• Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows

• Mirror (to supported interface)

• Redirect (to supported interface)

• Rate Limit

• QoS Remark
  L3 Features • 16 IPv4/IPv6 Interfaces
  • Static Routing

• 48 static routes
  • Static ARP
  • 316 ARP Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  • DHCP L2 Relay
  L2 and L2+ Features • Link Aggregation

• Static link aggregation

• 802.3ad LACP

• Up to 8 aggregation groups and up to 8 ports per group
  • Spanning Tree Protocol

• 802.1d STP

• 802.1w RSTP

• 802.1s MSTP

• STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
  • Loopback Detection

• Port-based

• VLAN based
  • Flow Control

• 802.3x Flow Control

• HOL Blocking Prevention
  • Mirroring

• Port Mirroring

• CPU Mirroring

• One-to-One

• Many-to-One

• Tx/Rx/Both
  L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups
  • IGMP Snooping

• IGMP v1/v2/v3 Snooping

• Fast Leave

• IGMP Snooping Querier

• IGMP Authentication
  • IGMP Authentication
  • MVR
  • MLD Snooping

• MLD v1/v2 Snooping

• Fast Leave

• MLD Snooping Querier

• Static Group Config

• Limited IP Multicast
  • Multicast Filtering: 256 profiles and 16 entries per profile
  Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • ZTP (Zero-Touch Provisioning)*
  VLAN • VLAN Group

• Max 4K VLAN Groups
  • 802.1q Tagged VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • GVRP
  • VLAN VPN (QinQ)

• Port-Based QinQ

• Selective QinQ
  • Voice VLAN
  Access Control List • Time-based ACL
  • MAC ACL

• Source MAC

• Destination MAC

• VLAN ID

• User Priority

• Ether Type
  • IP ACL

• Source IP

• Destination IP

• Fragment

• IP Protocol

• TCP Flag

• TCP/UDP Port

• DSCP/IP TOS

• User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy

• Mirroring

• Redirect

• Rate Limit

• QoS Remark
  • ACL apply to Port/VLAN
  Security • IP-MAC-Port Binding

• DHCP Snooping

• ARP Inspection

• IPv4 Source Guard
  • IPv6-MAC-Port Binding

• DHCPv6 Snooping

• ND Detection

• IPv6 Source Guard
  • DoS Defend
  • Static/Dynamic Port Security

• Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control

• kbps/ratio/pps control mode
  • IP/Port/MAC based access control
  • 802.1X

• Port based authentication

• Mac based authentication

• VLAN Assignment

• MAB

• Guest VLAN

• Support Radius authentication and
  accountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IPv6 • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications

• DHCPv6 Client

• Ping6

• Tracert6

• Telnet (v6)

• IPv6 SNMP

• IPv6 SSH

• IPv6 SSL

• Http/Https

• IPv6 TFTP
  Management • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3

• Trap/Inform

• RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
  MIBs • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)
  MANAGEMENT
  Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
  Management Features • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3

• Trap/Inform

• RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
  OTHERS
  Certification CE, FCC, RoHS
  Package Contents • TL-SG3210 Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
  System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
  Environment • Operating Temperature: 0–45 ? (32–113 ?);
  • Storage Temperature: -40–70 ? (-40–158 ?)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
